Ghost Box 2.0

  • Sale
  • Regular price


In stock and ready to ship

4 Channel - 50W per channel

Hidden Bluetooth Headunit



Want to keep the factory radio look in your vehicle but be able to have the functionality of a modern bluetooth head unit?

    Want to install aftermarket gauges but keep the ability to listen to your favorite music?






    This is the device for you!









    What's included:

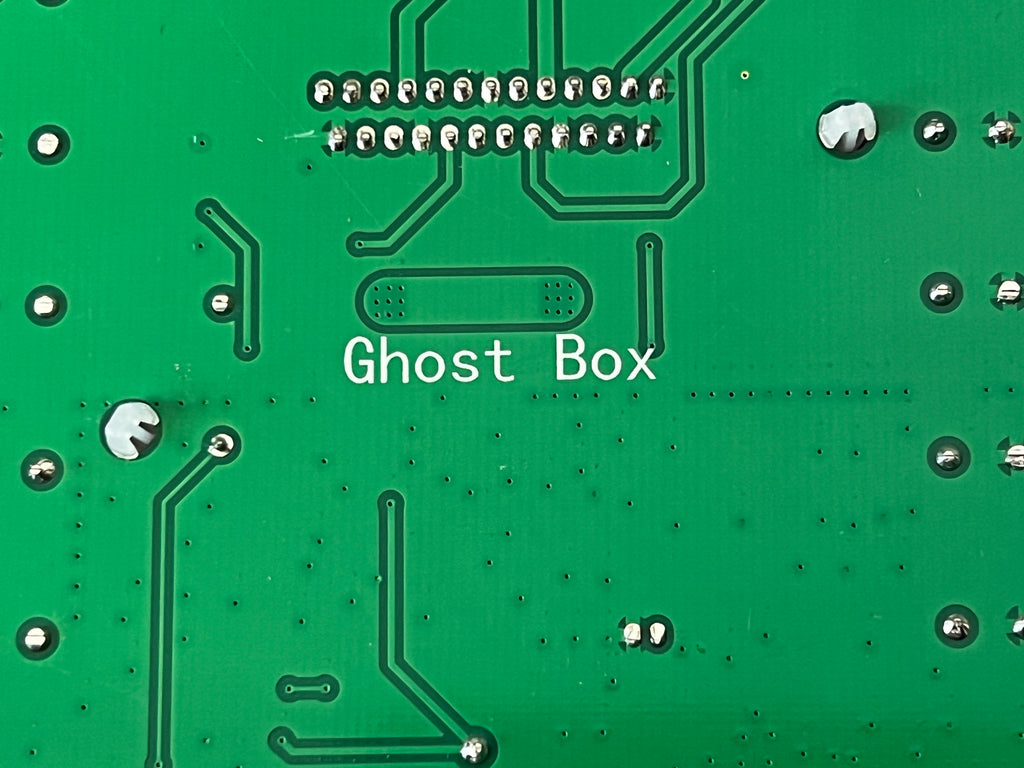

    1 - Ghost Box

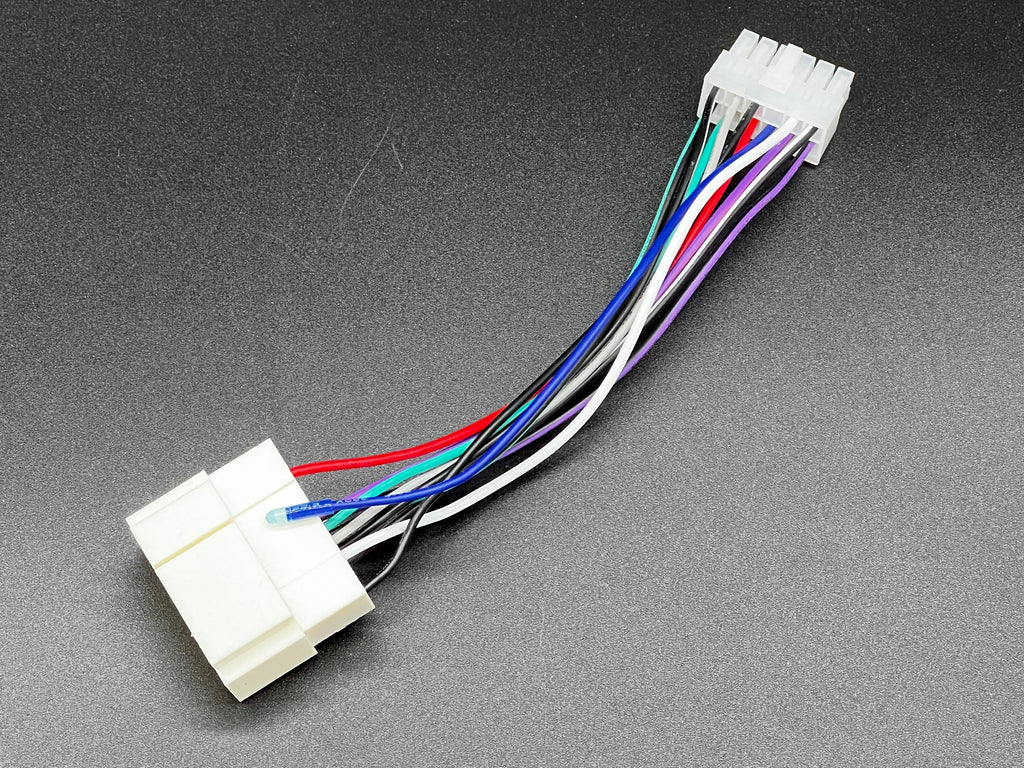

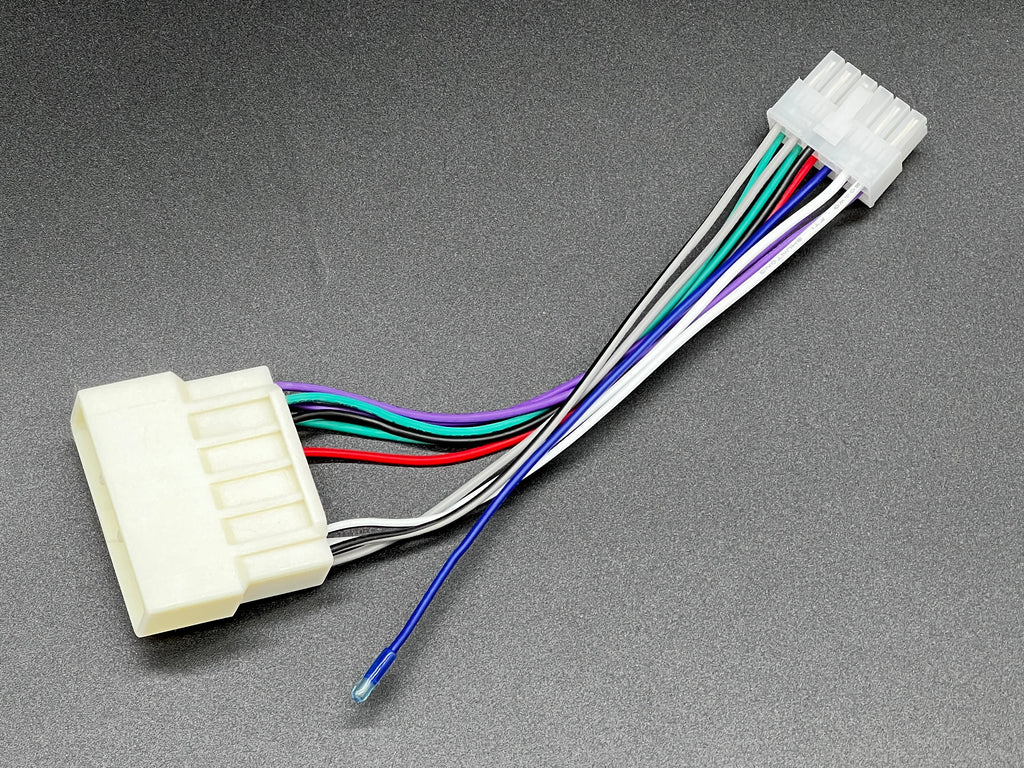

    1 - Ghost Box Wire Harness:

        • Choose one of the following:

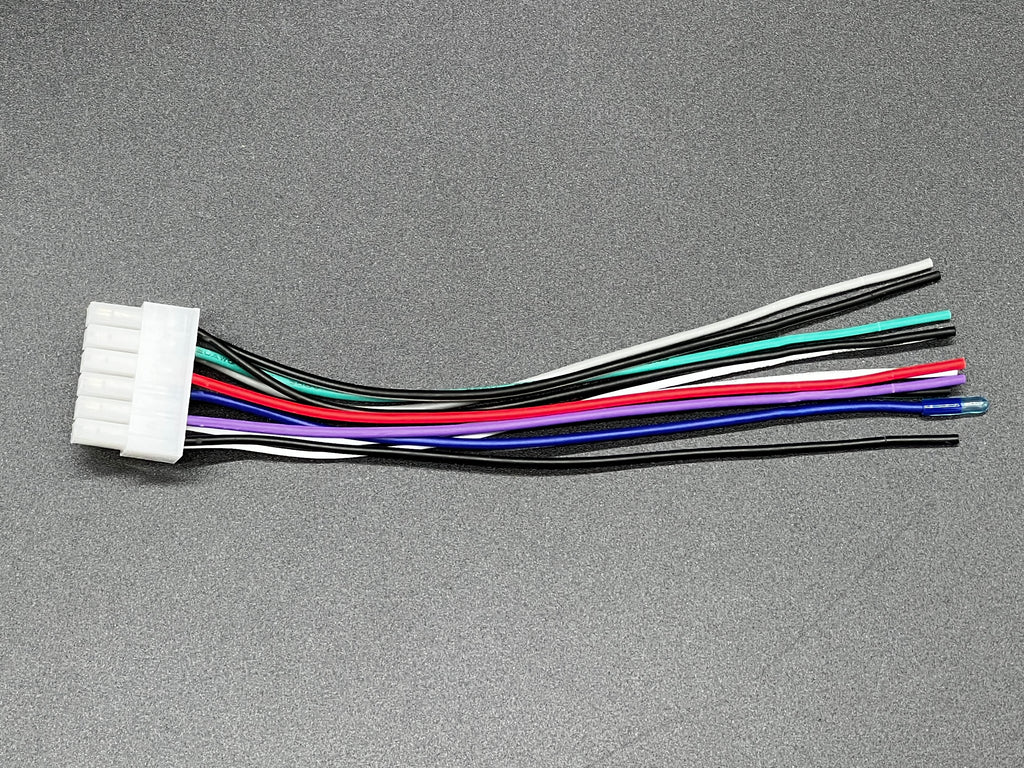

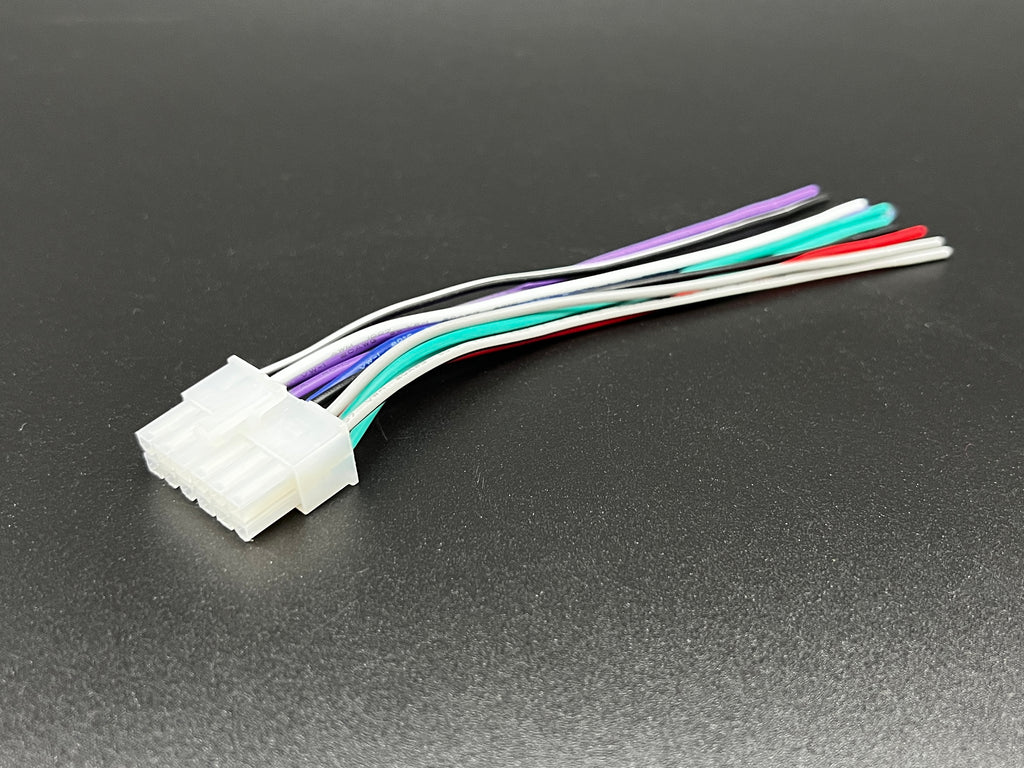

            • Universal (works in any vehicle, just like any other aftermarket radio/head-unit)
            • 1986-1998 Honda
            • 1998-2011 Honda

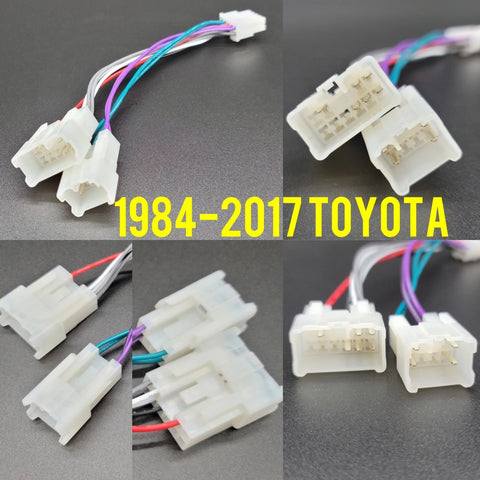

            • 1984-2017 Toyota
            • 1990-2001 Mazda
            • 1984-1994 Nissan
              • One of the above harnesses of your choice is included with each Ghost Box.



            • Additional harnesses are also sold separately.
            • Please reference the photos (above) of the connectors that we offer when selecting your harness.



      Please Note: We also offer an extension harness for use with the Ghost Box that you can use to be able to mount your Ghost box further from the radio connector, such as behind the glove box or simply further under the dash. This can be found here on our website in the Ghost Box category



      • Fully plug and play installation for many popular applications!
      • PLUS super simple step by step install for any other application
      • Simply purchase the radio connector for your vehicle (Crutchfield, WalMart,  Amazon, etc.), match up the colors and you’re good to go!
      • It is the same steps as installing any other aftermarket radio/head unit
      • We use industry standard wire colors which should match the radio connector you purchase.
      • A wire diagram will be included in the package with your Ghost Box. We do recommend verifying that the wire colors match.
      • This unit is a 4 channel, 50W per channel design
          • This means that your music will play from all 4 speakers

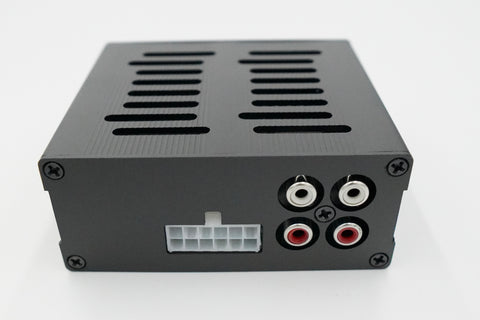

          • The dimensions of the Ghost Box are 3.8" x 3.3" x 1.6"
          • Weight is 10oz
          • Ghost Box has 2 RCA outputs as well as a remote wire for easy use with an amplifier and subwoofer.



      • To install: Simply plug in the Ghost Box and the unit will power on when you turn on the vehicle, the same as your factory radio would. You will hear a pleasant chime to let you know that the unit has powered on. Then, select the device name 'Ghost Box' in your bluetooth settings on your device. You will hear the chime a second time to let you know that Ghost Box has connected to your device. Thats it!
          • The audio EQ settings, as well as the volume are both controlled from your device.
      • For a complete install guide, please refer to our install video under the Install Guide tab here on our website.





      Application Guide

      Please note: Our application guide below is intended to be used as a reference only. The connector used in your particular vehicle could be different depending on the way the vehicle was optioned from the factory. If ordering one of our plug and play adapters with your Ghost Box, please compare your factory connector with our photos above. We have detailed photos of each of the connectors that we offer for you to reference. If you have any questions or concerns, please send us a message via the contact form above. We are always happy to help!



      Universal - Can be installed in any 12v vehicle.

      • Please note: You will need to wire in a 10A fuse if one is not already present.

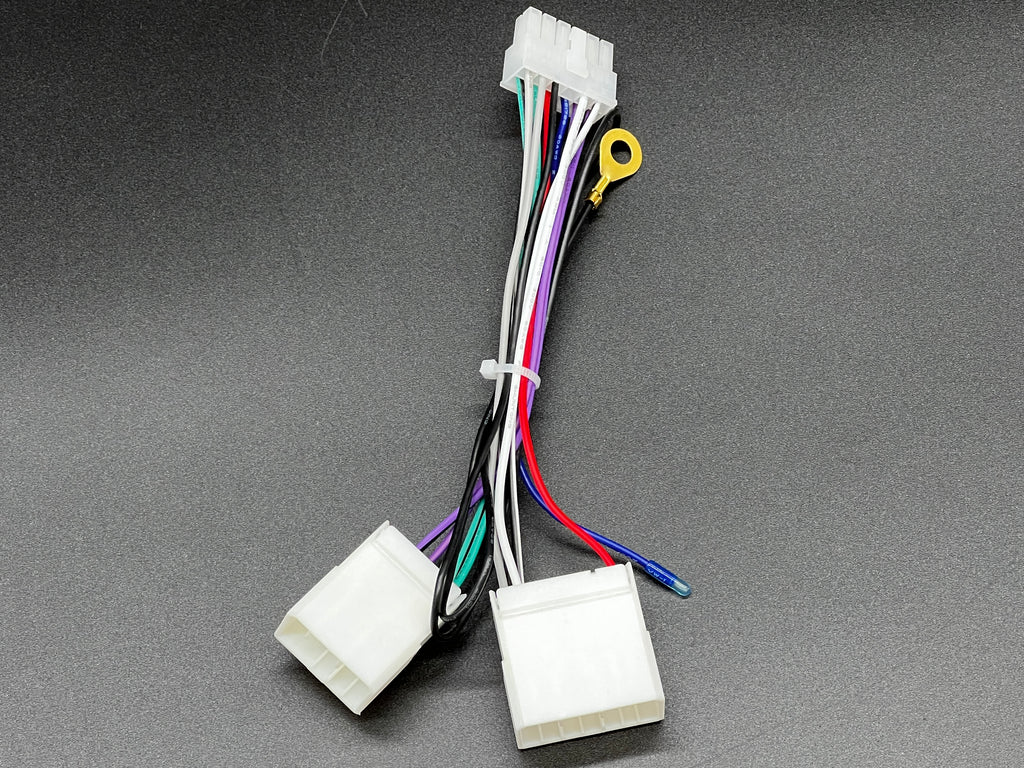

      Honda/Acura

      Honda/Acura 1986-1998:

      • Acura Integra 1986-2001 (Please note that all 1986-2001 Integra models use this connector)
      • Acura CL 1997-1998
      • Acura Legend 1986-1995
      • Acura RL 1996-1998
      • Acura TL 1995-1998
      • Acura Vigor 1992-1994
      • Honda Accord 1986-1997
      • Honda Civic 1986-1998
      • Honda CRV 1997-1998
      • Honda CRX 1986-1991
      • Honda Del Sol 1993-1997
      • Honda Insight 2000
      • Honda Odyssey 1995-1998
      • Honda Prelude 1986-1998



      Honda/Acura 1998-2011:

      • *RSX: 2002-2006
      • *Honda Civic 1999-2005
      • *Acura CL 1999-2003
      • *Acura MDX 2001-2006
      • *Acura RL 1999-2014
      • *Acura TL 1999-2003
      • *Acura TSX 2004-2008
      • Honda Accord 1998-2002
      • Honda CR-V 1999-2006
      • *Honda Element 2003-2011
      • Honda Insight 2001-2006
      • *Honda Odyssey 1999-2007
      • *Honda Pilot 2003-2008
      • *Honda Prelude 1999-2001
      • *Honda Ridgeline 2005-2008
      • Honda S2000 2000-2009

       **These vehicles marked with a (*) will need to have the factory amplifier bypassed, if equipped. This is the case for install of any aftermarket radio/head-unit, including the Ghost Box. If this is not done, the Ghost Box will power on and you will be able to connect to it via Bluetooth, but no sound will be emitted by the speakers.

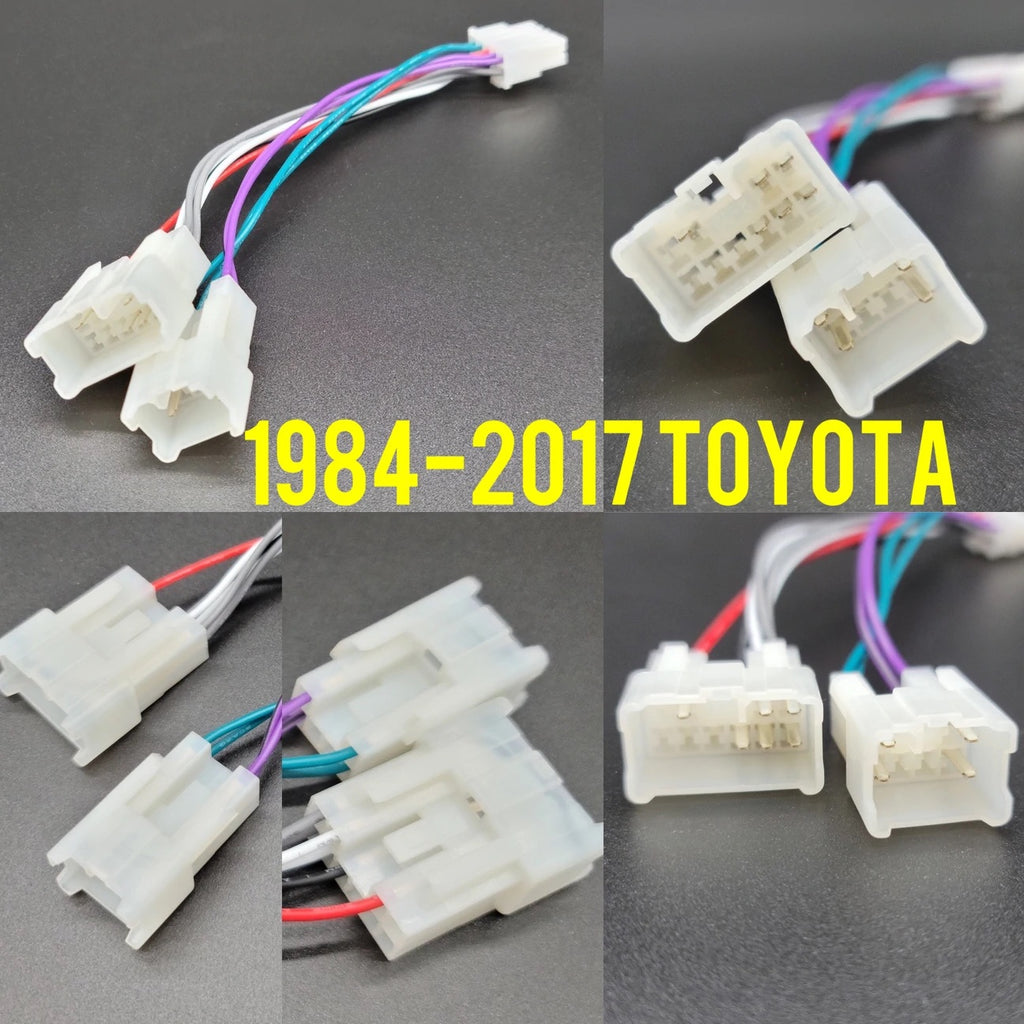

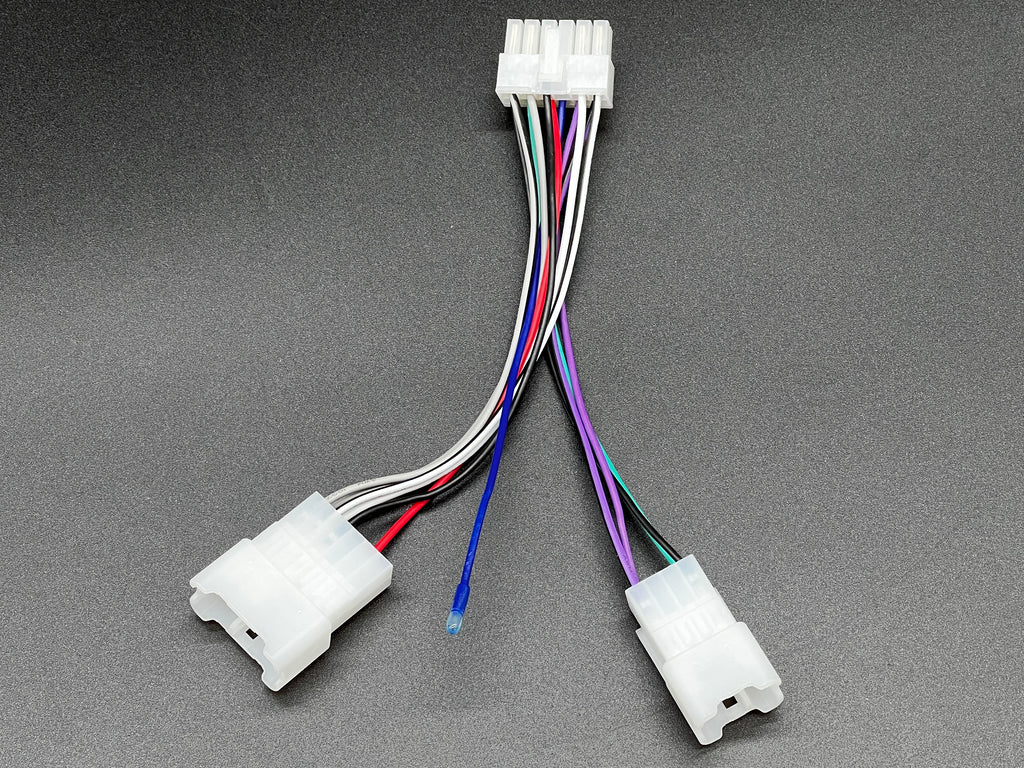

      1984-2017 Toyota/Scion/Subaru

      Toyota/Scion:

        • 1987 - 2005 4-Runner
        • 1995 - 1999 Avalon
        • 1987 - 2005 Camry
        • 1987 - 2004 Celica
        • 1987 - 2005 Corolla
        • 1988 - 1993 Cressida
        • 2000 - 2002 Echo
        • 2001 - 2004 Highlander
        • 1987 - 1996 Landcruiser
        • 1987 - 2002 MR2
        • 2004 - 2005 Prius
        • 1996 - 2004 RAV4
        • 2001 - 2004 Sequoia
        • 1996 - 2004 Sienna
        • 1995 - 2005 Tacoma
        • 1999 - 2004 Tundra
        • 2005 TC
        • 2004 - 2005 XA
        • 2004 - 2005 XB
      • 1994-2017 All Models (except models with JBL audio)

      Subaru:

      • 2019-2022 Ascent (non-Harman Kardon)
      • 2013-2022 BRZ
      • 2012-2014 Crosstrek XV (w/ nav)
      • 2015-2022 Crosstrek (both nav and non-nav models - non-Harman Kardon models only)
      • 2012-2015 Forester (w/ nav)
      • 2016-2022 Forester (both nav and non-nav models - non-Harman Kardon models only)
      • 2012-2014 Impreza (w/ nav)
      • 2015-2022 Impreza (both nav and non-nav models - non-Harman Kardon models only)
      • 2012-2014 Legacy (w/ nav)
      • 2015-2020 Legacy (both nav and non-nav models - non-Harman Kardon models only)
      • 2012-2014 Outback (w/ nav)
      • 2015-2020 Outback (both nav and non-nav models - non-Harman Kardon models only)
      • 2012-2015 WRX and WRX STI (w/ nav)
      • 2016-2022 WRX (both nav and non-nav models - non-Harman Kardon models only)

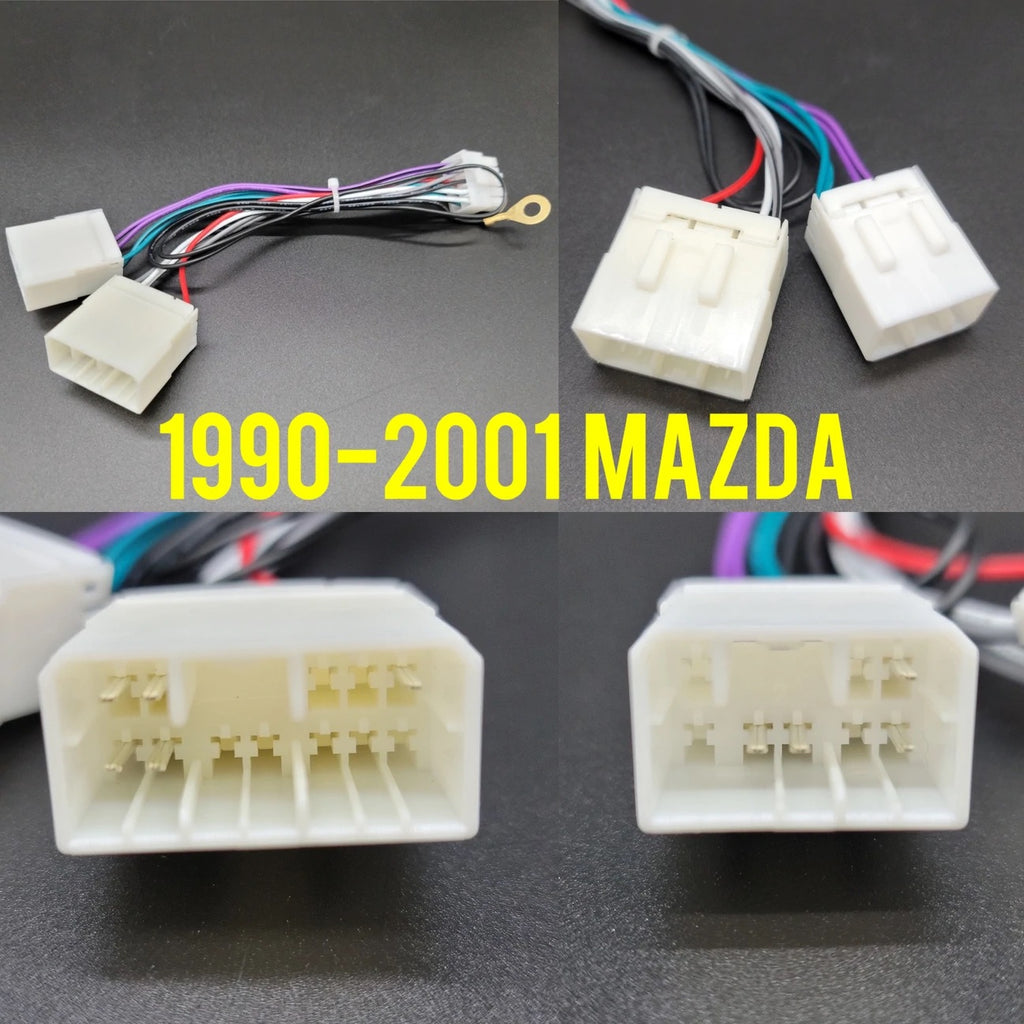

      Mazda 1990-2001

      • 1990 - 1994 323
      • 1990 - 2001 626
      • 1990 - 1996 929
      • 1990 - 2001 Miata
      • 1994 - 2001 Millenia
      • 1990 - 1999 MPV
      • 1992 - 1996 MX3
      • 1990 - 1996 MX6
      • 1990 - 2000 Protege
      • 1990 - 1996 RX-7
      • 2001 Tribute

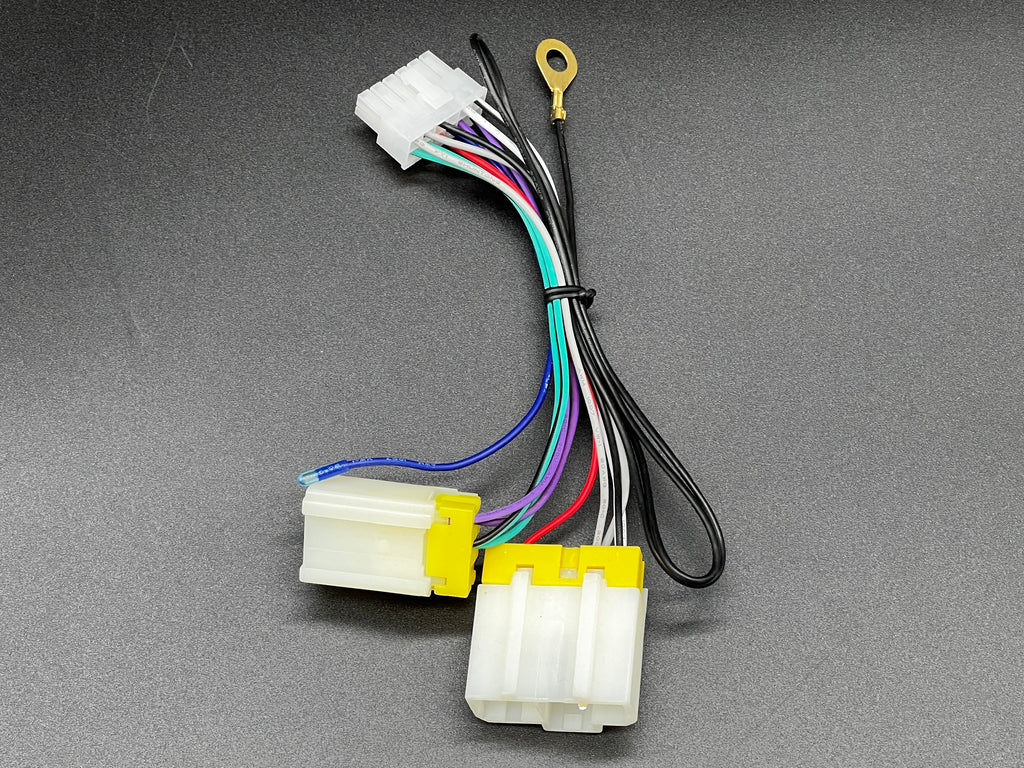

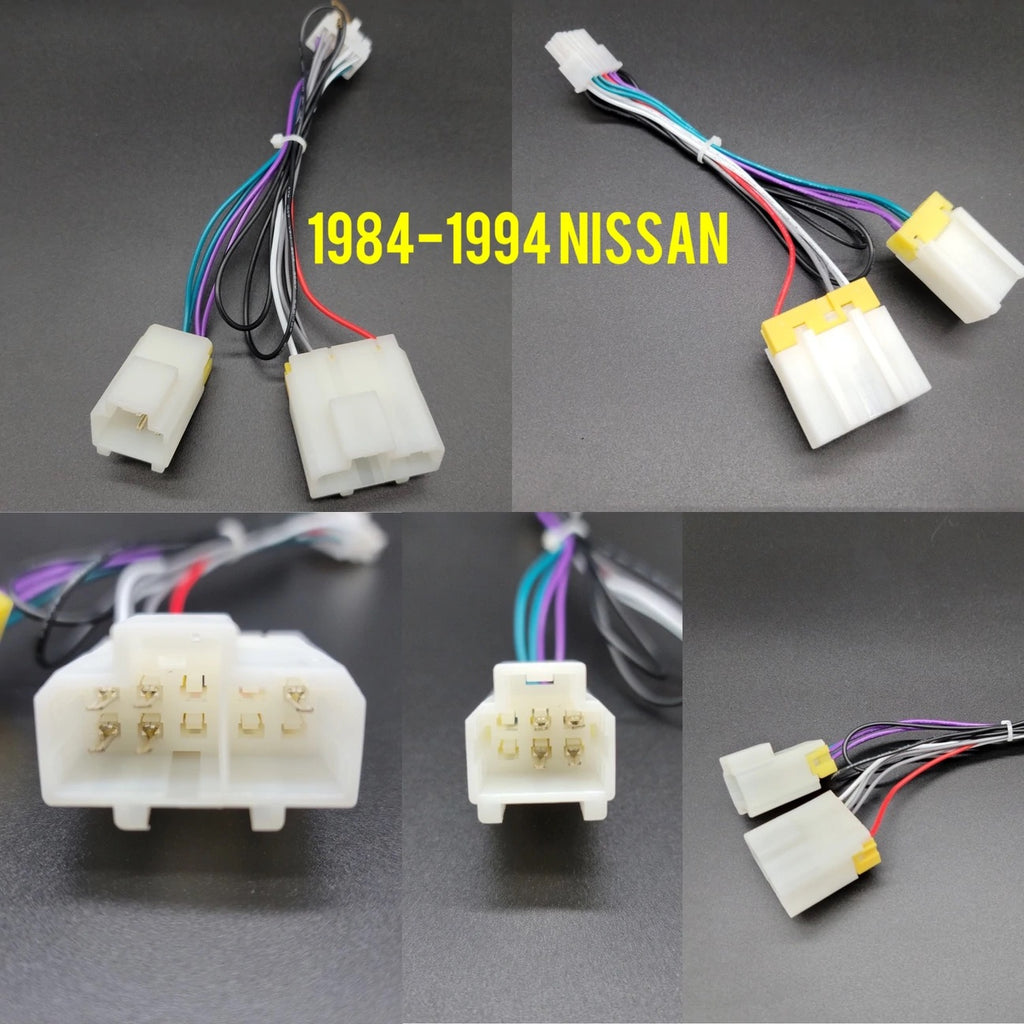

      1984-1994 Nissan/Infiniti

      Nissan:

      • 1984 - 1988 200SX
      • 1989 - 1994 240SX
      • 1993 - 1994 Altima
      • 1990 - 1991 Axxess
      • 1986 - 1994 Hardbody
      • 1987 - 1994 Maxima
      • 1991 - 1993 NX
      • 1987 - 1994 Pathfinder
      • 1987 - 1989 Pulsar
      • 1987 - 1994 Sentra
      • 1987 - 1992 Stanza

      Infiniti:

      • 1990 - 1993 M-Series
      • 1990 - 1994 Q-Series
      • 1991 - 1994 G-Series
      • 1993 - 1994 J-Series





      Please Note the following:



      1. If your vehicle is equipped with a Bose audio system/Factory installed amplifier, then an amplifier bypass will also be needed for install.
      2. In the application guide listed above, these are US model years. They may not align exactly with model years of European, Australian or Japanese spec vehicles.
      3. Please verify which connector your vehicle uses before ordering.
      4. These vehicles all use different style connectors and you will need to select the proper connector for your vehicle at checkout. If you are unsure, please double check before ordering or feel free to contact us and we can help determine which will work with your vehicle.



      • Shipping: Shipping in the Continental 48 US States is included free of charge. If you are located outside of the Continental US, you can simply add your desired products to your cart and, after entering your address, the website will calculate the exact shipping cost for you.



      All of our products include a 1 year Limited Warranty against any manufacturing defects.
