5-6 week lead time

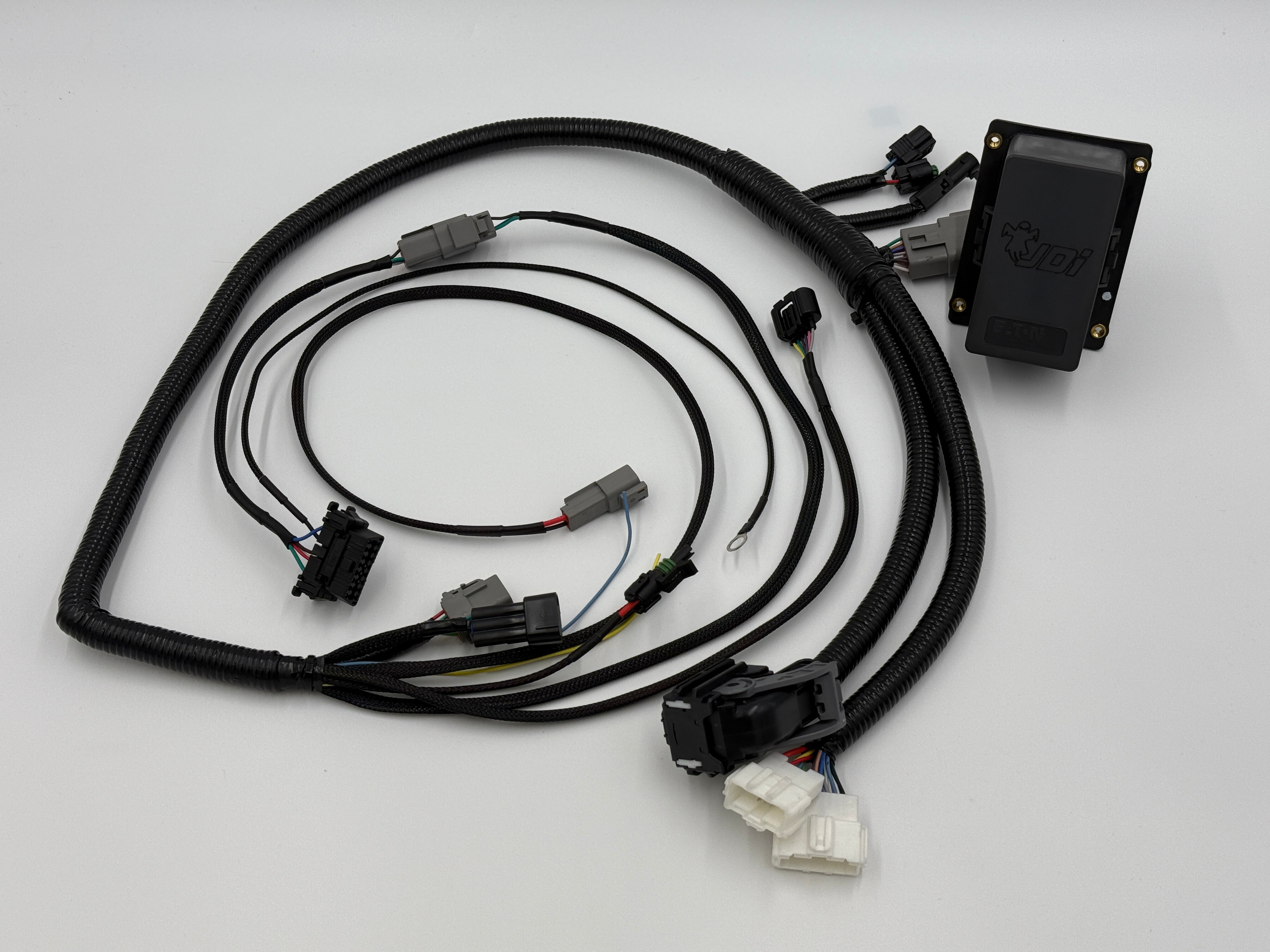

The Jordan Distributors inc. EG/DC/EK L15 Swap Conversion Wiring Harness is designed for those people who have decided to install an L15 turbo engine into the 92-00 Civic or 94-01 Integra.
If your engine of choice is the L15 (16-21 Civic 1.5T and 17-21 Civic Si) and you plan to use the OEM 16-21 Civic (1.5T manual) or 17-21 Honda Civic Si ECU, then we can help you get it running.
What is included with the Plug and Play - L15 Turbo Engine Swap Conversion Harness?
The relay box includes a fuel pump relay, main relay, injector relay, ignition coil relay and sub relay. The harness comes with an OBD2 port for use with Hondata FlashPro or for checking codes with a scan tool. All L15 swap conversion harnesses that we sell, both the universal version or the vehicle specific versioin like this one, will be prewired for all emissions related devices such as evap canister and fuel tank pressure sensor. This harness is entirely plug and play for the 92-00 Civic, 94-01 Integra or the 93-97 del Sol.
For gauges, we recommend using your phone or tablet to connect to your Hondata FlashPro. This will allow you to view all of the engine computer data as well as set it up as a dash with the Hondata app.
What engine harness does the L15 turbo conversion harness work with?
- This harness works with all 16-21 Civic 1.5T with manual transmission or 17-21 Civic Si engine harnesses.
- Please note: If your engine harness is from a Civic EX or Sport then you must also use the EX/Sport ECU and MAF sensor.
- If your engine harness is from a Civic Si then you must also use the Si ECU and MAF sensor.
- Support for the Accord 1.5T, CRV 1.5T and 22+ Civic 1.5T engine harnesses is coming soon.
What type of connectors and terminals do we use?
When we construct a Jordan Distributors inc. harness we utilize brand new connectors, terminals and wire. We do not reuse any used components. This ensures that you get a brand new and high quality wire harness. In addition, all new connectors decrease the chance for errors in the harness as we do not solder any of the joints. Every harness is hand made and extensively tested to ensure that the harness we send you works perfectly the first time.
What if you have questions or issues?
To ensure a trouble-free install, we include a link to our installation guide video. The most valuable thing you get when you purchase a Jordan Distributors inc. harness is full tech support. If you have any problems at all with the swap just send us an email and a tech will get you the information you need. If you have any questions or comments, please email sales@JordanDistributors.com
Notes:
Battery Location:
This kit is designed for the battery to be mounted in the factory location. $40 upcharge for custom length LIN battery sensor harness. This LIN battery sensor is required for the engine to operate and cannot be omitted. You can use the entire negative battery cable from the 16-21 Civic. It will mount in your vehicle, has the LIN sensor and is the proper length without any modification.
ECT2 location:
This kit is designed for the ECT2 (engine coolant temperature) sensor to be located on the passenger side of the radiator. $20 uncharge for custom length ECT2 sensor harness. If your radiator does not have a mounting provision for this sensor, you can use an inline coolant sensor adapter.
Emissions:
We will have connectors for fuel tank pressure and evap to satisfy emissions. Final testing is being conducted currently to get BAR and CARB approval.
Throttle pedal:
This kit is designed to use the 10th generation Civic throttle pedal. Any 2016-2021 Civic pedal will work (base or Si). We also offer an adapter harness to use the 04-08 TL/TSX, 03-07 Accord or 07-11 Element TPPS (throttle pedal position sensor). Using the TPPS from these vehicles will allow you to use your original throttle pedal without needing to mount the 10th gen Civic pedal. Please note: you will need the 07-11 Element throttle cable along with whichever TPPS you choose. If you select this option, we will include this adapter harness for you. the main harness will still work with the 10th generation Civic pedal, meaning you will have the option to use either.
Air Conditioning:
Under development now. All harnesses are pre-wired for this to function.
**If you have selected any modifications above, please leave us a note at checkout with your desired lengths. Please also keep watch of your email after ordering, we will reach out to you if we have any questions.**
Legal Disclaimer: Users assume all cost and risk associated with these or any other items purchased from Jordan Distributors inc. Parts sold or manufactured by Jordan Distributors inc. may not meet legal requirements for use on public roads. People thinking about purchasing product(s) from Jordan Distributors inc. should check with their local and state authorities for legality. It is the user’s responsibility to know and comply with all local and federal laws and regulations. Use or installation of Jordan Distributors inc. products may affect user insurance and/or vehicle warranty coverage. It is the user’s sole responsibility for consequences that may occur due to having the product installed in his/her vehicle. Jordan Distributors inc. assumes no legal responsibilities and/or liabilities, whether to user’s vehicle, engine, person(s), and/or property(s), that result from the use of, or servicing of a vehicle of which a Jordan Distributors inc. product has been installed/attempted to be installed, or to any other vehicle(s) and/or person(s), regardless of whether or not this product has any involvement directly or indirectly and/or liability, and/or whether or not proper installation has been carried forth. All engines, engine parts and electrical components are for OFF ROAD USE ONLY/ RACING VEHICLES ONLY. They are not for or to be used on public roads in the USA. Acquisition of a Jordan Distributors inc. product will act as an acknowledgement of the legal disclaimer stated herein. Jordan Distributors inc. reserves the right to change this disclaimer at any time without any prior consent or notification.
